Detergent Powder making machine high pressure spray dryer with nozzle

FOB Reference Price:Get Latest Price
$5,000.00 - $500,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DW
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Medicine Processing, Chemicals Processing, Food Processing
Condition:
New
Type:
Dehumidifier
Place of Origin:
China
Brand Name:
ZHENGAN
Voltage:
220V 50HZ
Power(W):
Based
Dimension(L*W*H):
custom-made
Weight:
550kg-10T
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
20 feet container (External dimension:20 feet*8 feet*8 feet)
40 feet container (External dimension:40 feet*8 feet*8 feet)
40 high container(External dimension:40 feet*8 feet*9 feet)
20' open top container
Load weight: 20 tons; Volume: 31.5 cube
40' open top container
Load weight: 30.4 tons;Volume : 65 cube
20' flat rack container
Internal volume: 5.85M * 2.23M * 2.15M
40' flat rack container
Internal volume:12.05M * 2.12M * 1.96M
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Our Company

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd.,this is Drying Equipment manufacture. We are specialized in development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc

Product Description


The spray drier is widely used in the liquid shaping technology and in the drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid.

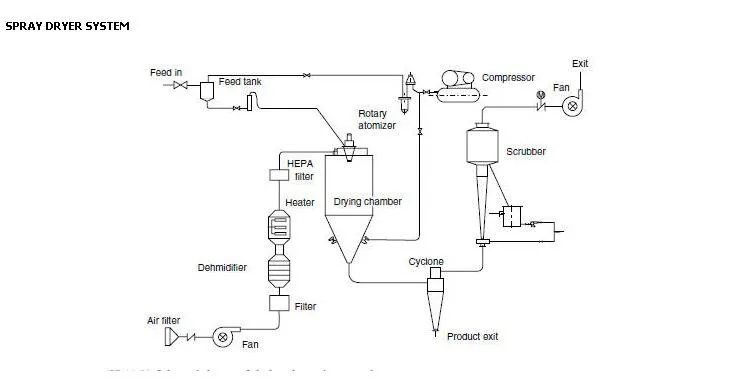

The working of spray dryer is as follows: Fresh air after filtering and heating, enters into the air distributor at the top of dryer.Then the hot air enters into the drying chamber. The liquid of raw material is pumped in through diaphragm pump, be atomized into tiny droplets. Through the very short time of contacting the hot air, the materials can be dried into the finished products.The wasted air and fine powder will be collected through collector at the bottom of cyclone.The tower body also equipped with observation door, sight glass, lamp-house and so on.

Technical Parameter

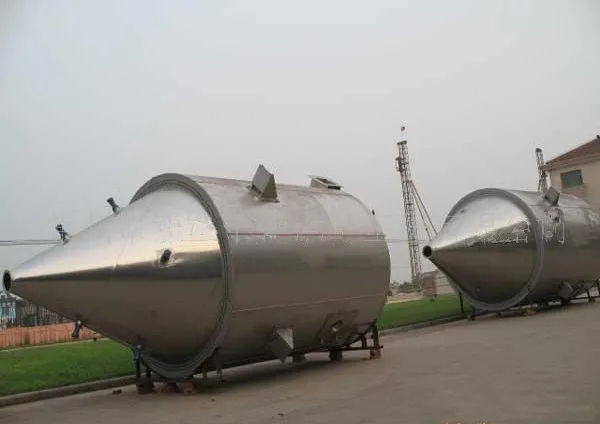

Detailed Images
Features

1 -) Special machine design according to the product.

2 -) Uniform drying due to movement of product.

3 -) Effective use of Drying Air circulation fans.

4 -) Heat recovery system can be added to the dryer in accordance with customer demand.

5 -) Multi stage belt systems can be used.

6 -) can easily be controlled belt speed and drying time.

7 -) Less workers make same work according to tray drying system

8-) Dryer can be use at continuous systems.

9 -) Can be use most of sectors.

Application

♦ Quick drying speed. In the hot air stream, 95% to 98% of moisture can be evaporated immediately.
♦ It is especially suitable for drying thermal sensitive material.
♦ The product made by the machine has good uniformity, fluidity and high quality.
♦ The productive process is simple and the operation control is very convenient.
♦ For liquid containing 40-60% of damp (for special material, may be 90%), it can be dried to powder product through drying one time. After dried, it is not necessary to crush and sieve. So it reduces productive procedure and raises the purity of product.

Our Service

Design and production
We solicit buyers opinions widely at the design and production stage of equipment; especially at the stage of plan and elevation arrangement, we give full consideration to buyers’ site conditions and public engineering conditions, and pay concurrent attention to the optimum combination when assuring the quality of equipment.
Installation and commissioning
After the equipment is delivered to buyers factory, we will dispatch full-time technical personnel to instruct buyers’ installation and to take charge of commissioning until normal use of the equipment.
Training
Before buyers use our equipment normally, our commissioning personnel will organize buyers’ relevant personnel to accept training, which covers the maintenance and care of equipment, timely repair of common faults, and procedures for operation of equipment.
Warranty
We provide one-year warranty for our equipment. For damage of equipment arising from non-artificial factors within the warranty period, we will provide repair service for free; and for damage of equipment arising from artificial factors, we will provide repair service in time and collect corresponding cost.
Maintenance and period
For damage of equipment after expiration of warranty period, we will provide on-site repair service within 24h/48h for enterprises inside/outside the province after receiving buyers’ notification. The service provided after expiration of warranty period is fee-based, and flat cost will be collected each time when the service is provided.

Project Case

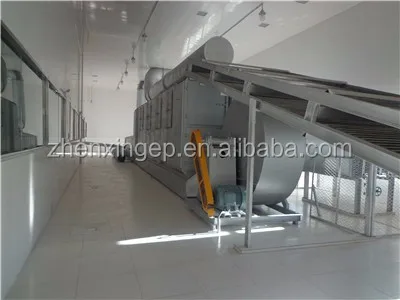

The Onions belt dryer equipment

This is belt dryer are customized to the Indian customer, Heat source:Steam

1. Diameter:9300*2500*4080mm
2. Drying time:20-250mins(adjustable)
3. Steam consumption: 1.2-1.5T/h
(pressure≥0.8Mpa)
4. Installed power:39.3KW(frequency control);
5. Drying area:66 ㎡

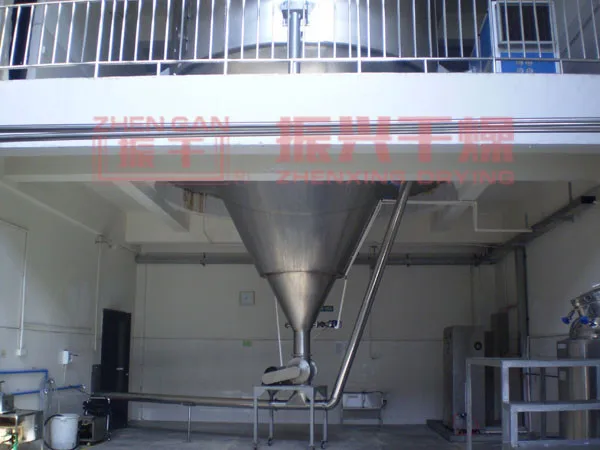

The spray dryer equipment.

1. Name of material: coffee (instant)
2. Initial solid content: 35%
3. Output: 1000kg/h (final moisture: ≤3.5%)
4. Evaporation capacity: 1650kg/h
5. Inlet air temperature: 190°C (adjustable)
6. Outlet air temperature: 85°C (adjustable)
7. Heating method: heat-transfer oil heat exchange
8. Recovery method: fluidized bed central pipe discharging
9. Dedusting method: cyclone cluster + wet scrubber

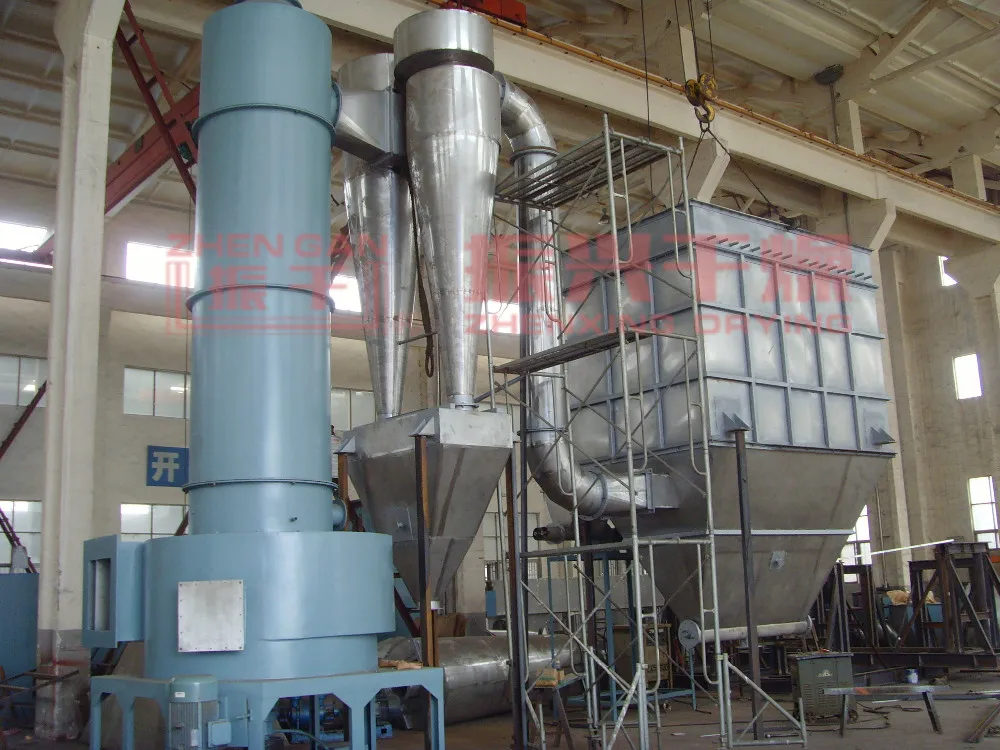

The flash dryer equipment

1. Material name: calcium carbonate
2.Feed capacity:5000kg/h
3.Evaporate amount:≤750kg/h
4.Powder water content:0.5%
5.Temperature:inlet 250-280℃,outlet 70-90℃
4.Install power:192kw
5.Gas consumption:140M3/H
