China supplier active carbon drying machine, spin flash dryer

FOB Reference Price:Get Latest Price
$5,000.00 - $500,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
DW
Condition:
New
Type:
Dehumidifier
Place of Origin:
China
Brand Name:
ZHENGAN
Voltage:
220V 50HZ
Power(W):
Based
Dimension(L*W*H):
custom-made
Weight:
550kg-10T
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
3000 Set/Sets per Year
Packaging & Delivery
Packaging Details
20 feet container (External dimension:20 feet*8 feet*8 feet)
40 feet container (External dimension:40 feet*8 feet*8 feet)
40 high container(External dimension:40 feet*8 feet*9 feet)
20' open top container
Load weight: 20 tons; Volume: 31.5 cube
40' open top container
Load weight: 30.4 tons;Volume : 65 cube
20' flat rack container
Internal volume: 5.85M * 2.23M * 2.15M
40' flat rack container
Internal volume:12.05M * 2.12M * 1.96M
Port
shanghai
Lead Time :
45 days
Our Company

Changzhou ZHENXING Environmental Technology Engineering Co., Ltd.,this is Drying Equipment manufacture. We are specialized in development, manufacturing, and installation of dryers, mixers, granulators, grinders, conveyors, sieve and etc.

We follow a strict quality control procedure and we provide high quality products with prompt after sales services and technical supports.

Our products have been exported to North America, Pakistan, India, Philippines, Thailand, Nigeria, South Africa, Mexico, Colombia, Australia, Egypt, Vietnam, Russia, and other countries.
We truly believe that honesty, credibility, and integrity are the keys to build a widely successful business!
We are strictly complying with the international technical standards and quality management systems and we became the leading company in the drying equipment industry. We also dedicated in the environment protection and energy conservation industry.
Our company mission and top priority is to be our customer’s best business partner by consistently providing quality products and good after sales service. We will keep continuous improvement to our products and services in order to provide high quality equipment to our customers
We are providing the continuous training programs and safe working environments to all of our employees and we are making our best efforts to ensure the development of the company.

Product Description

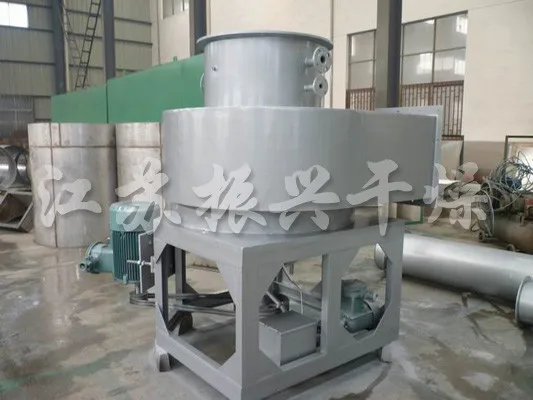

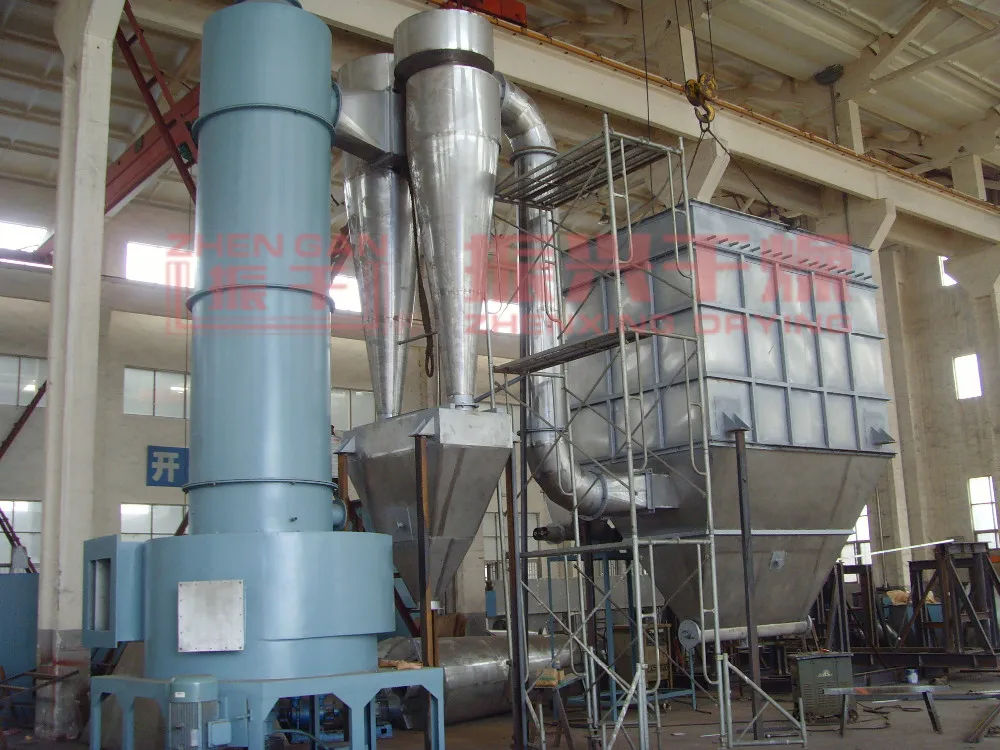

XZG model spin flash dryer is designed by ourselves .The hot air enter into the dryer chamber from the bottom of dryer host,its going into the dryer chamber by inlet entrance.The rotor at the conical base of the drying chamber fluidity product particles in a drying-efficient hot air flow pattern in which any wet lumps are rapidly disintegrated. Using the heat from the air stream, the material dries as it is conveyed. Product is separated using cyclones, and/or bag filters. Typically, cyclones are followed by scrubbers or bag filters for final cleaning of the exhaust gases to meet current emission requirements.
Airborne, fine particles pass through a classifier at the top of the drying chamber, while larger particles remain in the air flow for further drying and powdering.
2.The advantage compared with the others
2.1 Adopt 2 lines tangential air enter into volute at the best position,it will improve or remove blind Angle of wind and also the wind in the weak
2.2 Be good at control the powder’s moisture,fineness,and hold time.for control the speed coordinating and unifying at spinning disk work with wind-enter ,it can ensure the outlet wind with low temperature,it will also reduce the energy consumption.
2.3 The special alloy steel be used in the rotary blade,the layout structure with unique,it have the character of small erosion,contact surface wide,cutting force strong.
2.4 Adopt the newly leak-proof structure,the main engine bearing life will be delay,and the bearing black with the cooling device.
2.5 In order to ensure the powder water content less than 0.5%,so increase the height than the original basis ,it also equip with spinning disk,it will make the powder quality and particle size meet with your requirement.
Due to the gas-solid corresponding relative velocity big,even though the mix temperature around 80~90℃,the powder temperature still on below 45℃ condition,it will help to packing and save energy.

Technical Parameter

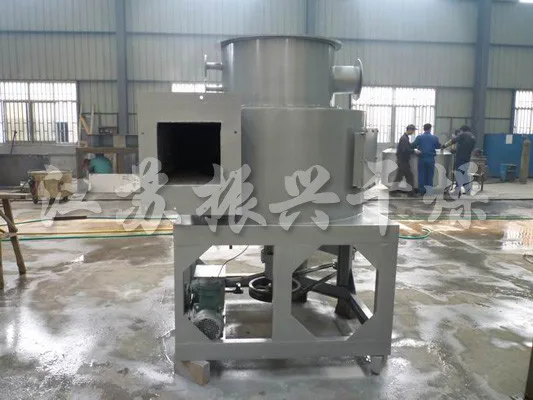

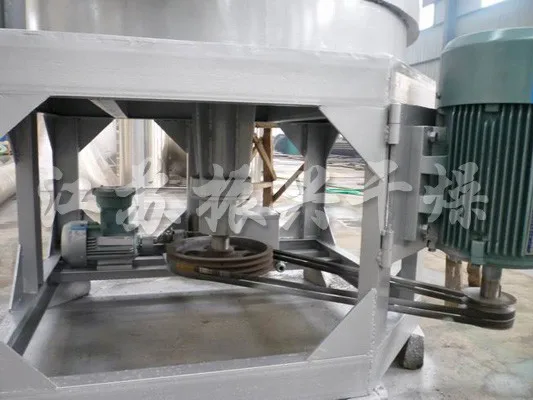

Detailed Images
Features

1 -) Special machine design according to the product.

2 -) Uniform drying due to movement of product.

3 -) Effective use of Drying Air circulation fans.

4 -) Heat recovery system can be added to the dryer in accordance with customer demand.

5 -) Multi stage belt systems can be used.

6 -) can easily be controlled belt speed and drying time.

7 -) Less workers make same work according to tray drying system

8-) Dryer can be use at continuous systems.

9 -) Can be use most of sectors.

Application

Organics: Atrazine (Pesticides), Cadmium Laurate, Benzoic Acid, Germicide, Sodium Oxalate, Cellulose Acetate, Organic Pigments, and etc.

Dyes: Anthraquinone, Black Iiron Oxide, Indigo Pigments, Butyric Acid, Titanium Hydroxide, Zinc Sulfide, Azo Dye Intermediates, and etc.

Inorganic: Borax, Calcium Carbonate, Hydroxide, Copper Sulfate, Iron Oxide, Barium Carbonate, Antimony Trioxide, Metal Hydroxides, Heavy Metal Salts, Synthetic Cryolite, and etc.

Food: Soy Protein, Gelatinized Starch, Lees, Wheat Sugar, Wheat Starch, and etc.

Our Service

Design and production
We solicit buyers opinions widely at the design and production stage of equipment; especially at the stage of plan and elevation arrangement, we give full consideration to buyers’ site conditions and public engineering conditions, and pay concurrent attention to the optimum combination when assuring the quality of equipment.
Installation and commissioning
After the equipment is delivered to buyers factory, we will dispatch full-time technical personnel to instruct buyers’ installation and to take charge of commissioning until normal use of the equipment.
Training
Before buyers use our equipment normally, our commissioning personnel will organize buyers’ relevant personnel to accept training, which covers the maintenance and care of equipment, timely repair of common faults, and procedures for operation of equipment.
Warranty
We provide one-year warranty for our equipment. For damage of equipment arising from non-artificial factors within the warranty period, we will provide repair service for free; and for damage of equipment arising from artificial factors, we will provide repair service in time and collect corresponding cost.
Maintenance and period
For damage of equipment after expiration of warranty period, we will provide on-site repair service within 24h/48h for enterprises inside/outside the province after receiving buyers’ notification. The service provided after expiration of warranty period is fee-based, and flat cost will be collected each time when the service is provided.

Project Case

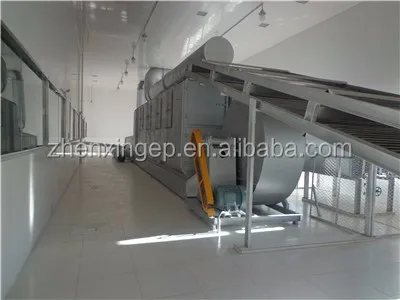

The Onions belt dryer equipment

This is belt dryer are customized to the Indian customer, Heat source:Steam

1. Diameter:9300*2500*4080mm
2. Drying time:20-250mins(adjustable)
3. Steam consumption: 1.2-1.5T/h
(pressure≥0.8Mpa)
4. Installed power:39.3KW(frequency control);
5. Drying area:66 ㎡

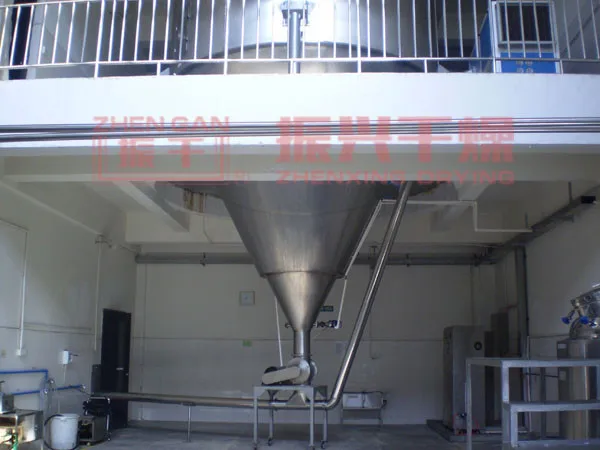

The spray dryer equipment.

1. Name of material: coffee (instant)
2. Initial solid content: 35%
3. Output: 1000kg/h (final moisture: ≤3.5%)
4. Evaporation capacity: 1650kg/h
5. Inlet air temperature: 190°C (adjustable)
6. Outlet air temperature: 85°C (adjustable)
7. Heating method: heat-transfer oil heat exchange
8. Recovery method: fluidized bed central pipe discharging
9. Dedusting method: cyclone cluster + wet scrubber

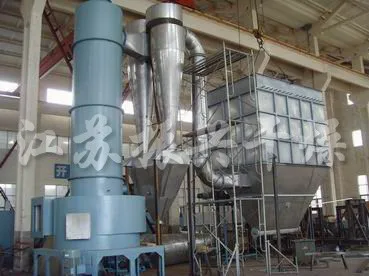

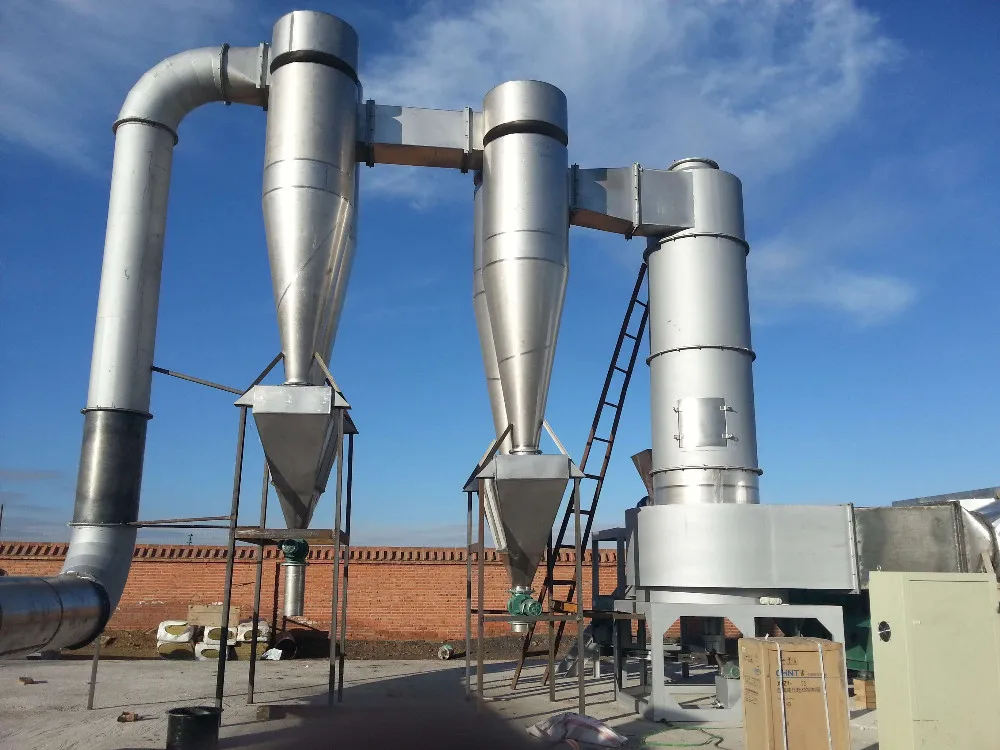

The flash dryer equipment

1. Material name: calcium carbonate
2.Feed capacity:5000kg/h
3.Evaporate amount:≤750kg/h
4.Powder water content:0.5%
5.Temperature:inlet 250-280℃,outlet 70-90℃
4.Install power:192kw
5.Gas consumption:140M3/H
